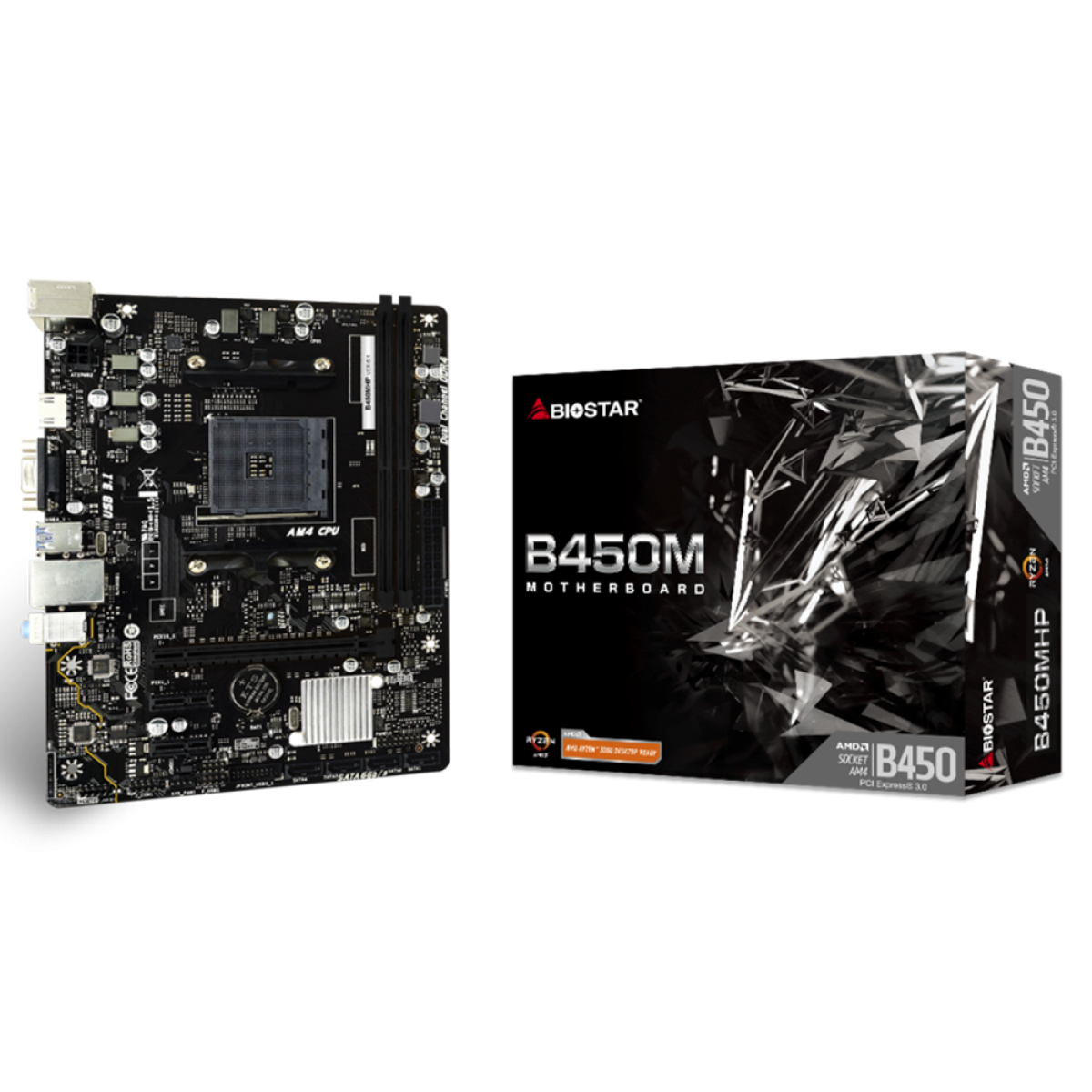

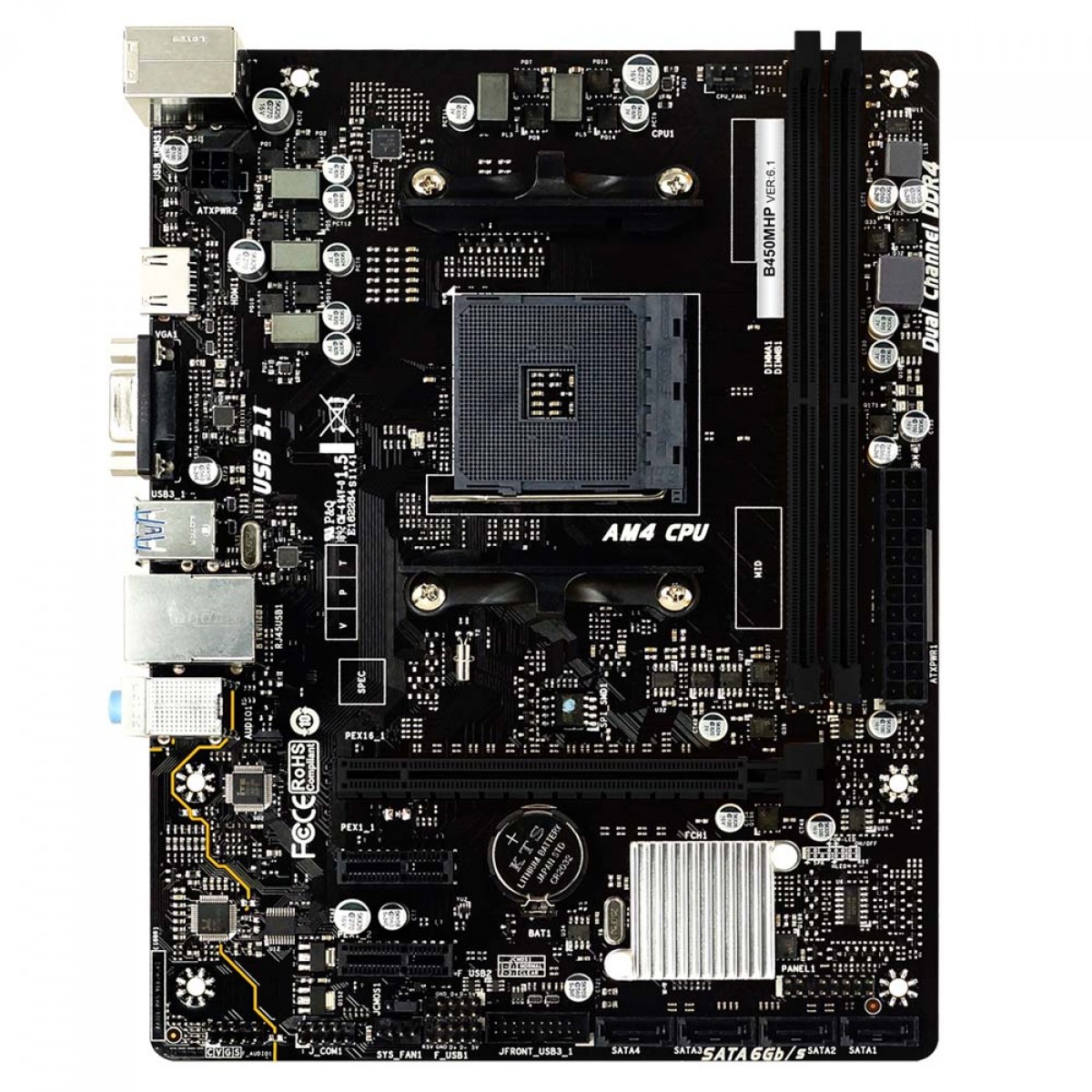

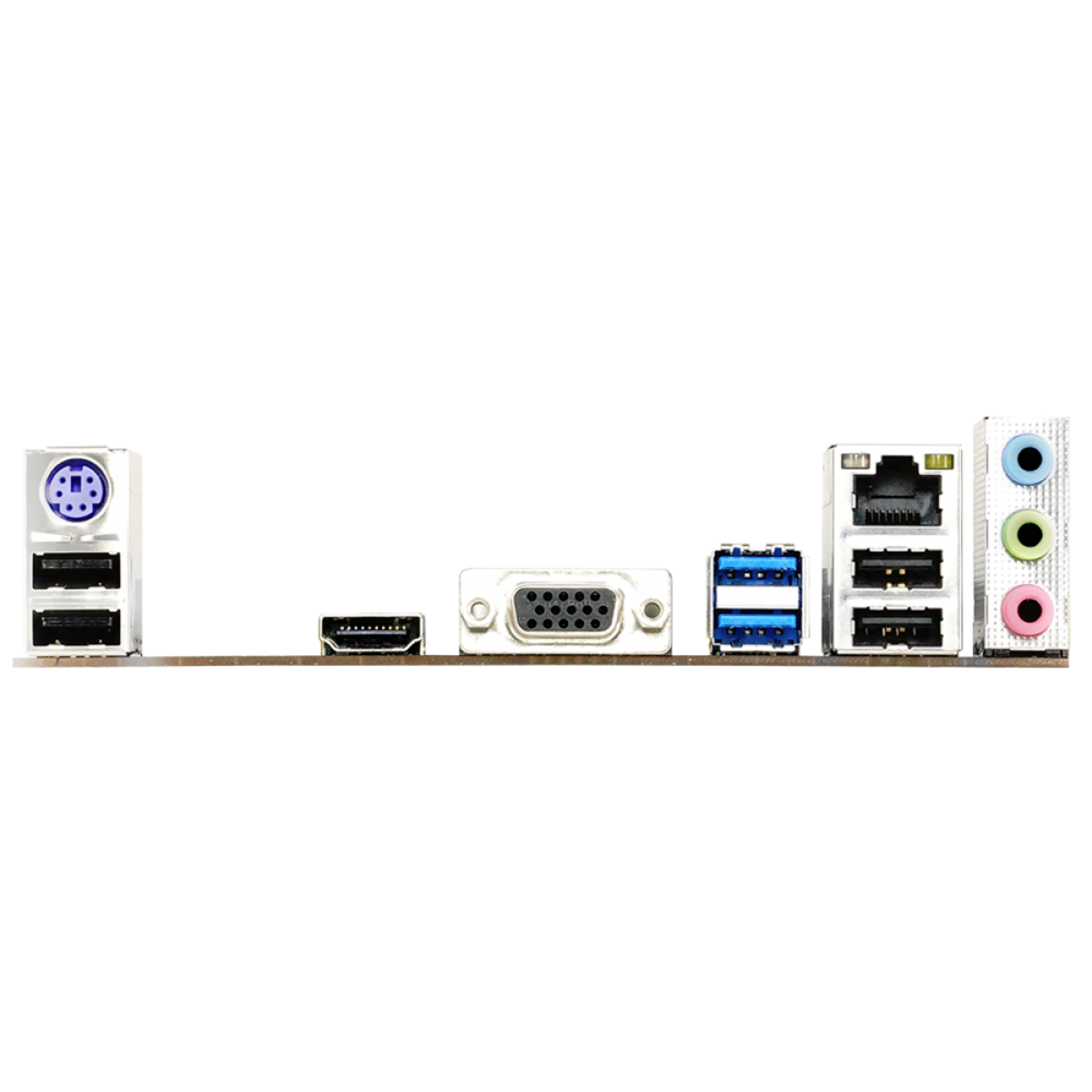

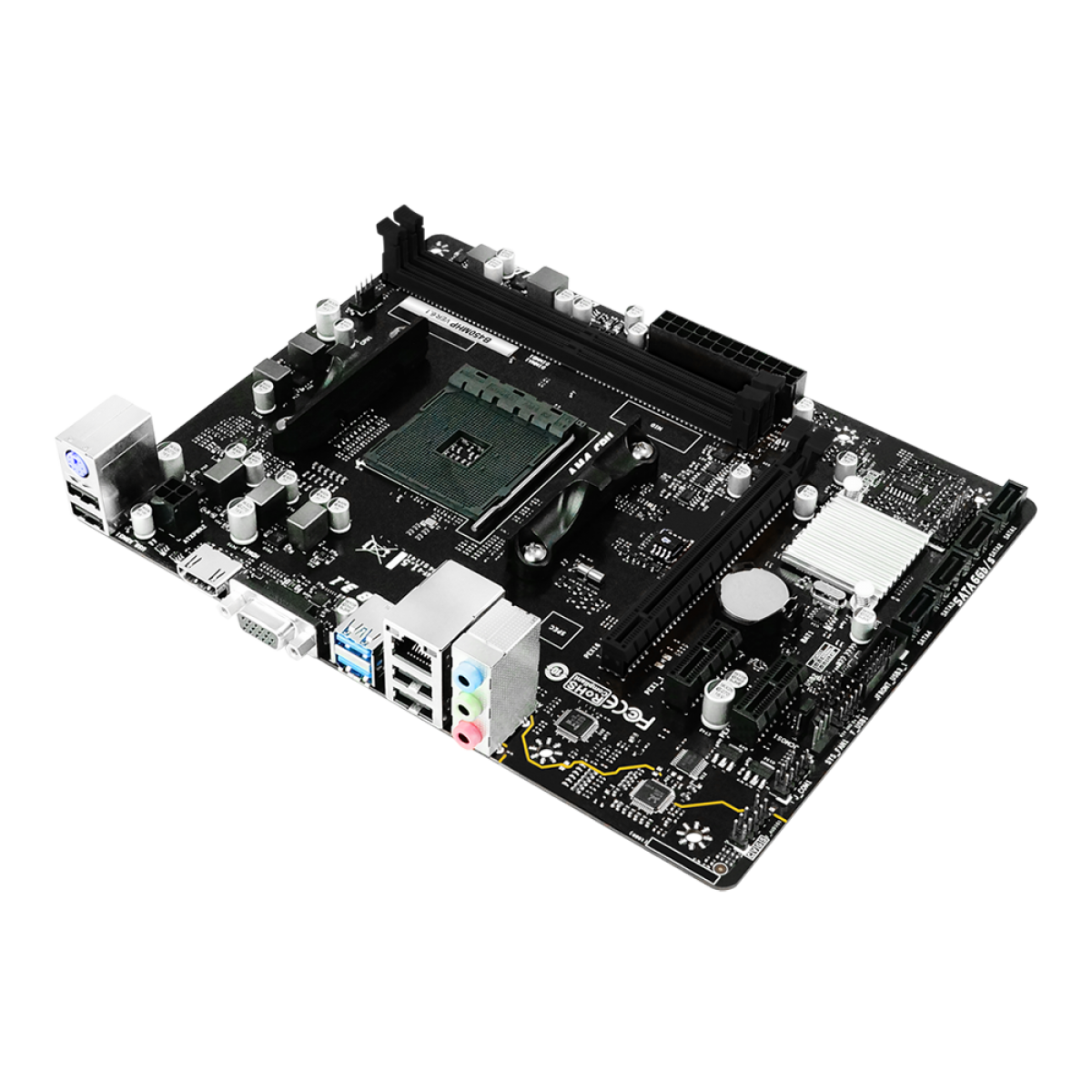

Mark: Biostar Model: B450MHP Processor: Socket AM4 supports AMD A-series APU, Ryzen APU/Ryzen CPU Click here to see the list of supported processors Chipset: AMD B450 Memory: Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200+(OC) 2 x DDR4 DIMM Memory Slot, max. Supports up to 64 GB of memory Each DIMM supports 8/16/32GB non-ECC DDR4 module * Please refer to www.biostar.com.tw for memory support list. Integrated video: By CPU model Supports DX12 Supports HDCP Store: 4 x SATA III Connector (6 Gb/s): Supports AHCI and RAID 0, 1, 10 LAN Auto-Negotiation Realtek RTL8111H-VB 10/ 100/ 1000 Mb/s, Half/Full duplex capability Audio Codec: ALC897 7.1 channels, high definition audio USB 4 USB 3.2 (Gen1) ports (2 on rear I/O and 2 via internal headers) 8 USB 2.0 ports (4 on rear I/O and 4 on internal headers) EXPANSION SLOT 2 x PCIe 2.0 x1 slot 1 x PCIe 3.0 x16 slot (bandwidth depends on CPU) Rear I/O: 1 x PS/2 Keyboard/Mouse 1 x VGA Port 1 x HDMI Port 1 x LAN port 2 x USB 3.2 (Gen1) ports 4 x USB 2.0 Ports 3 x Audio Connector Internal I/O: 4 SATA III 6.0 Gb/s connectors 2 USB 2.0 connectors (each connector supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) header (each header supports 2 x USB 3.2 (Gen1) ports) 1 4-pin power connector 1 x 24-pin power connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM serial header H/W Monitoring: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart/Manual CPU Fan Control System voltage monitoring Dimension: Micro ATX Form Factor Dimension: 17.4cm x 22.6cm (W x L) OS Support: Supports Windows 7 (64-bit) / 10 (64-bit) / 11 (64-bit) *BIOSTAR reserves the right to add or remove support for any operating system with or without prior notice. Software package: BullGuard Accessories: 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide Features: Supports 100% solid capacitor BIO-FLASHER: Supports online BIOS update
