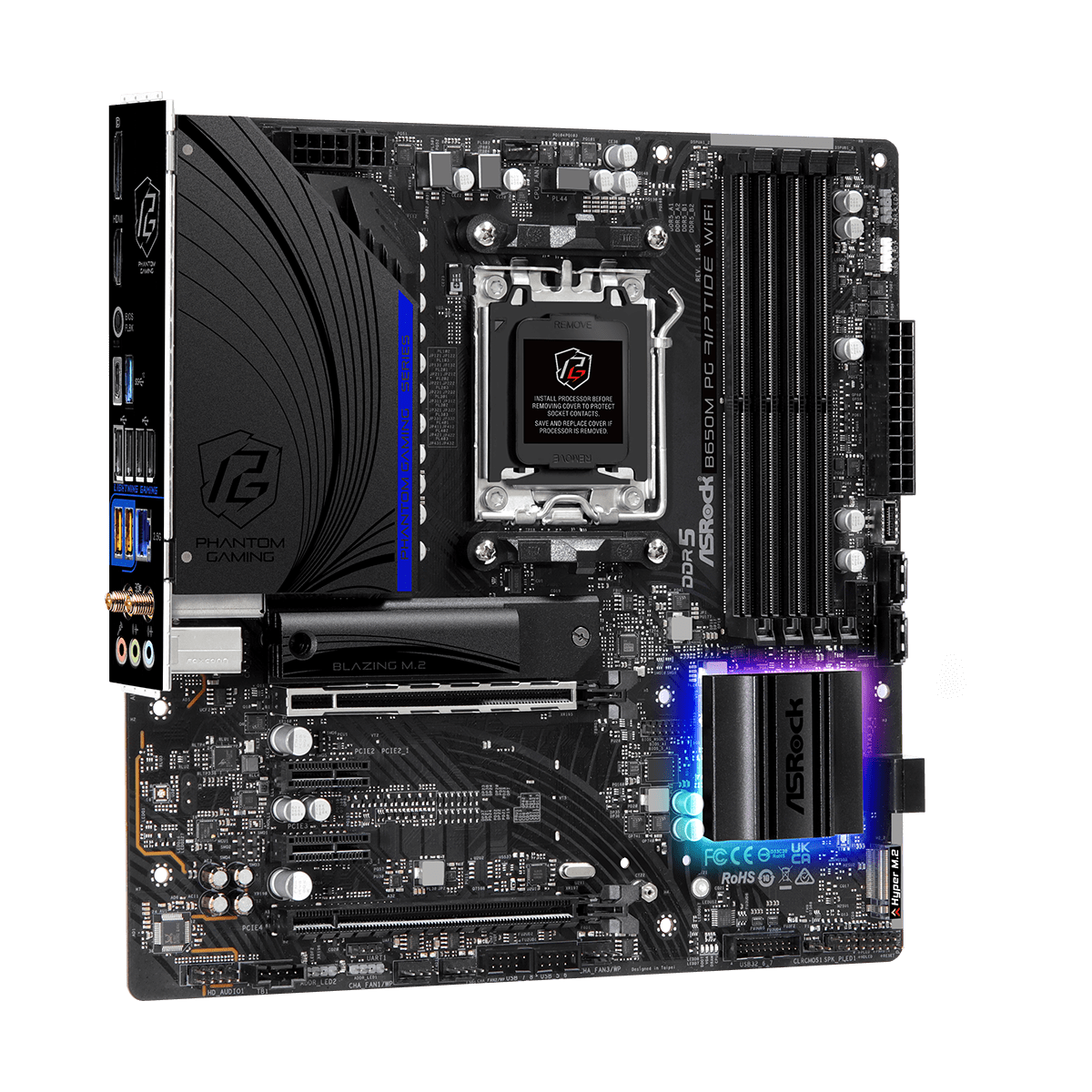

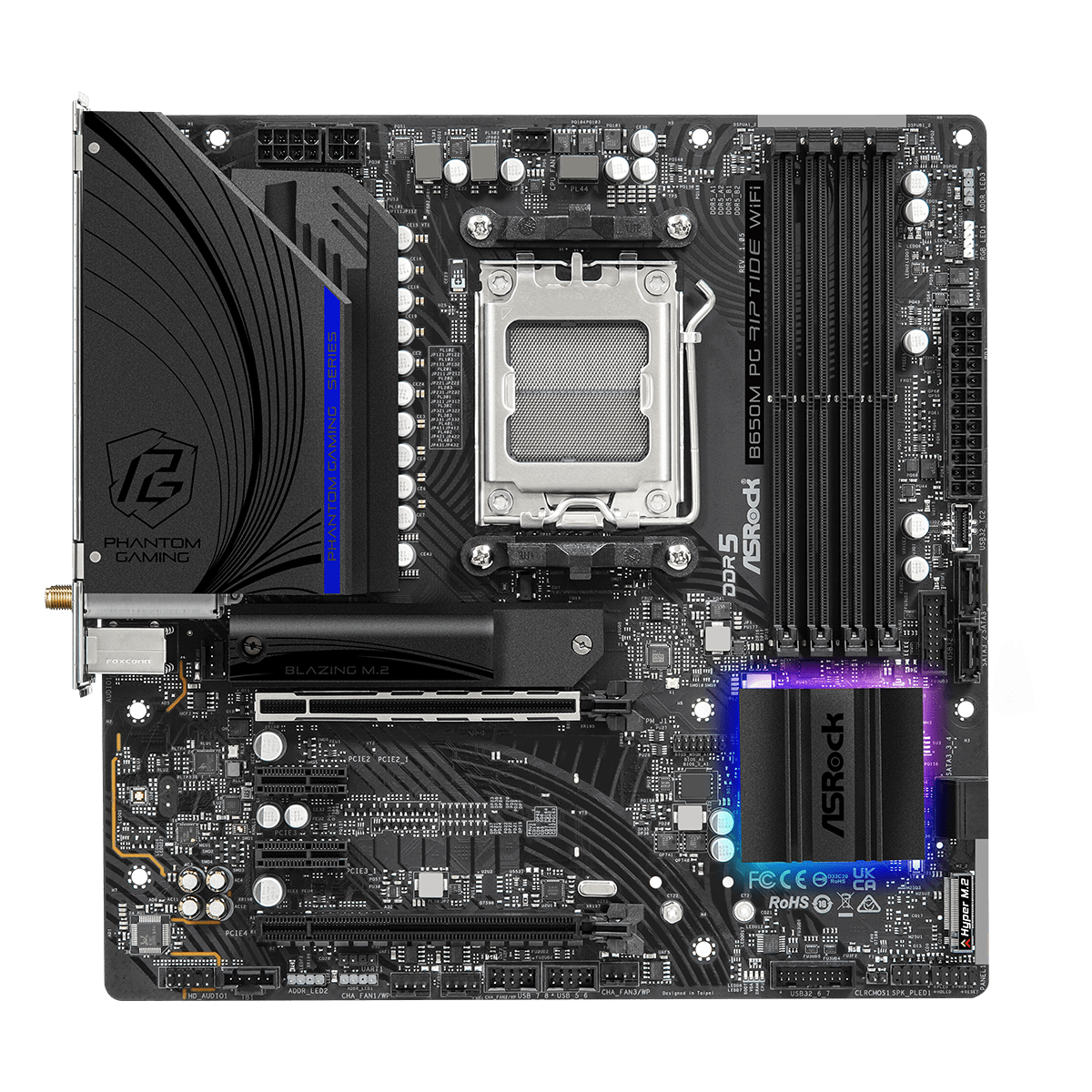

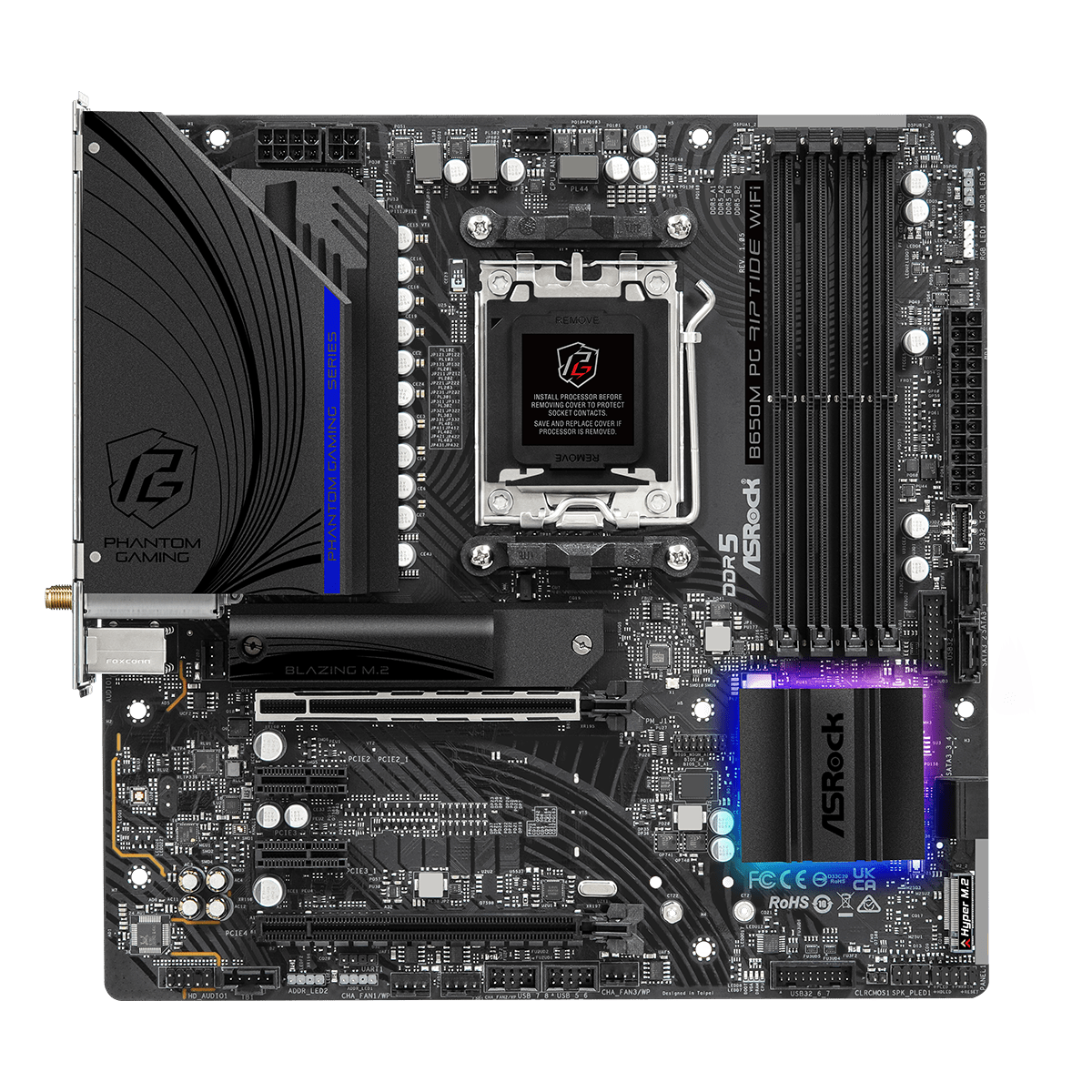

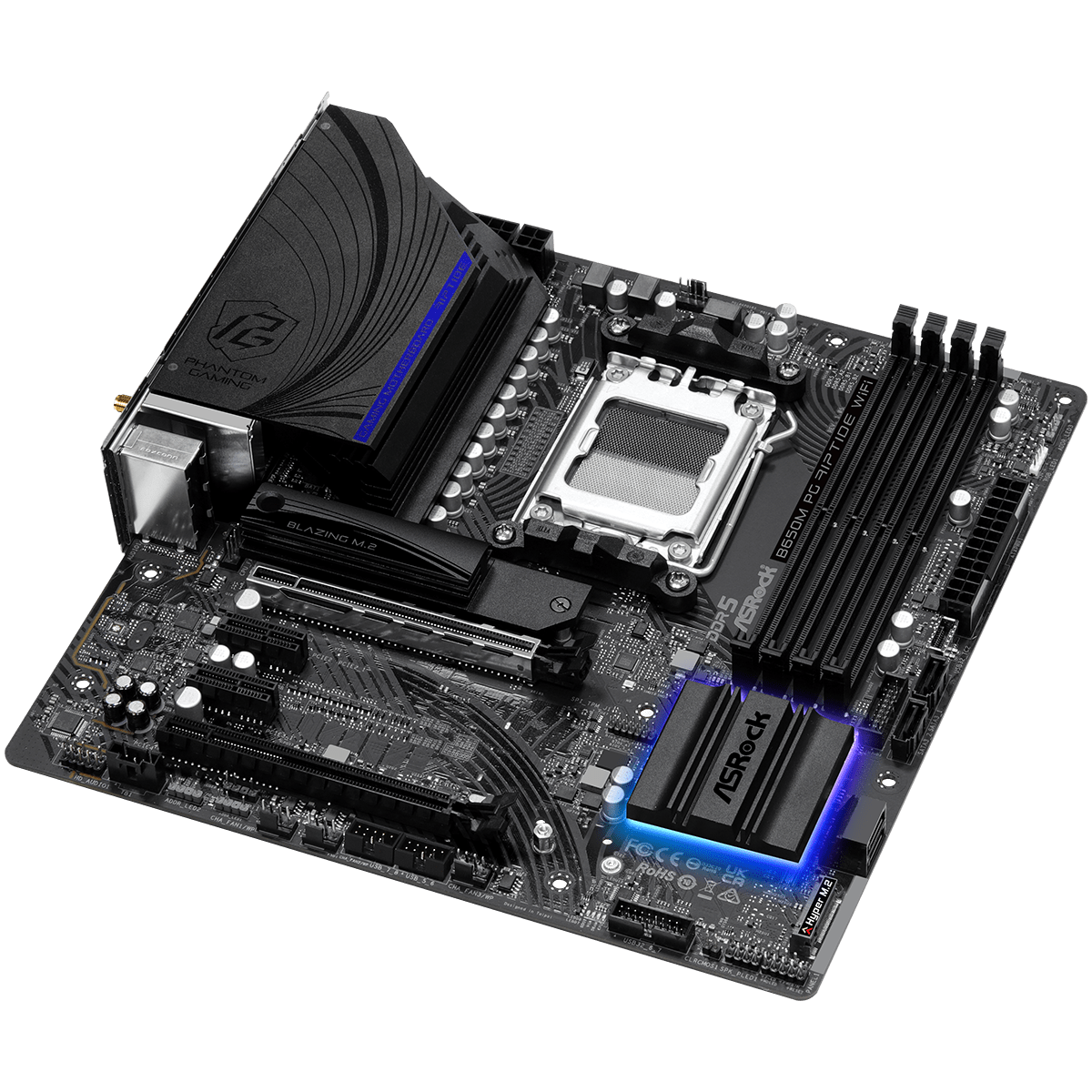

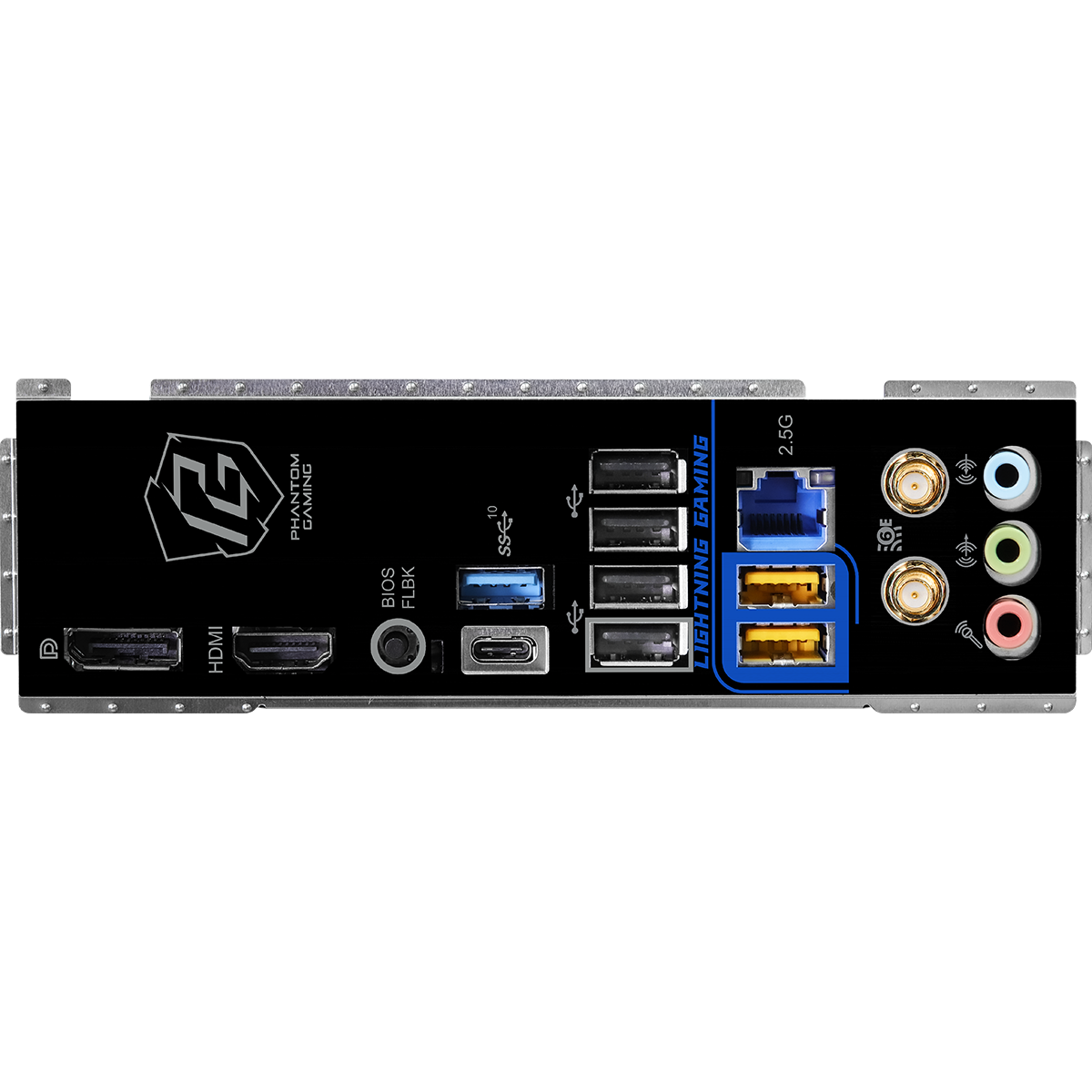

Mark: ASRock Model: 90-MXBKR0-A0UAYZ CPU: Supports AMD Socket AM5 Ryzen™ 7000 series processors Chipset: AMD B650 Memory: - Dual channel DDR5 memory technology - 4 x DDR5 DIMM slots - Supports DDR5 ECC/non-ECC un-buffered memory up to 7200+(OC)* - Max. system memory capacity: 192 GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS: Legal 256MB AMI UEFI BIOS with GUI support Graphics: AMD RDNA™ 2 integrated graphics (actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (Compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio: - 7.1ch HD audio (Realtek ALC897 audio codec) - Nahimic Audio LAN: - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN software - Intelligent auto-adjust bandwidth control - Visually friendly UI - Visual network usage statistics - Optimized default settings for gaming, browsing and streaming modes - User-customized priority control Wireless network: - Wi-Fi 6E 802.11ax module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports 2x2 dual band with 6GHz extended band* support - 2 antennas to support diversity 2 (transmit) x 2 (receive) technology - Supports Bluetooth+ Class II High Speed - Supports MU-MIMO Slots: CPU: - 1 x PCIe 4.0 x16 (PCIE1) slot, supports x16 mode* - 1 x PCIe 4.0 x16 (PCIE4) slot, supports x4 mode* Chipset: - 2 x PCIe 3.0 x1 slots (PCIE2 and PCIE3) * - 1 x Vertical M.2 Socket (E Key), supports type 2230 WiFi/BT PCIe WiFi module Store: CPU: - 1 x Blazing M. 2 Socket (M2_1, Key M), supports PCIe Gen5x4 (128Gb/s) type 2260/2280 mode* Chipset: - 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s connectors RAID: - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices USB: 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen2 Type-A (Rear) 1 x USB 3.2 Gen1 Type-C (front) 6 x USB 3.2 Gen1 (2 rear, 4 front) ) 8 x USB 2.0 (4 rear, 4 front) Connector: - 1 x TPM SPI connector - 1 x Power LED and Speaker Connector - 1 x RGB LED connector* - 3 x Addressable LED headers ** - 1 x CPU fan connector (4-pin) * * * - 1 x CPU/Water Pump Fan Connector (4-pin) (Intelligent Fan Speed ​​Control) * * * * - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Intelligent Fan Speed ​​Control) * * * * * - 1 x 24-pin ATX power connector - 1 x 8-pin 12V power connector - 1 x 4-pin 12V power connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC (5-pin) connector (supports ASRock Thunderbolt™ 4 AIC card) - 2 x USB 2.0 connectors (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type-C USB 3.2 Gen1 Header * Supports total up to 12V/3A, 36W LED Strip ** Supports in total up to 5V/3A, 15W LED Strip * * * CPU_FAN1 supports fan power up to 1A (12W). * * * * CPU_FAN2/WP supports fan power up to 2A (24W). * * * * * CHA_FAN1~3/WP supports fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can automatically detect whether a 3-pin or 4-pin fan is in use. Rear Panel I/O: 2 x Antenna ports 1 x HDMI port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A port (10Gb/s) (ReDriver) 1 x USB 3.2 Gen2 Type-C port (10Gb/s) (ReDriver) - 2 x USB 3.2 Gen1 ports (USB32_23 are Lightning Gaming ports.) - 4 x USB 2.0 ports - 1 x RJ-45 LAN port - 1 x BIOS Flashback button - HD Audio Connectors: Line In / Front Speaker / Microphone Software and UEFI: Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash Accessories: - 1 x User Manual - 2 x SATA data cables - 2 x ASRock WiFi 2.4 / 5 / 6 GHz antennas - 2 x screws for M.2 sockets - 1 x spacer for M.2 socket
