Mark:
ASRock
Model:
90-MXBLK0-A0UAYZ
CPU:
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors*
*Please refer to the CPU support list on ASRock's website for more information. (http://www.asrock.com/)
Chipset:
AMD A620
Memory:
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM slots
Supports DDR5 ECC/non-ECC un-buffered memory up to 7200+(OC)*
Max.
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS:
Legal 256MB AMI UEFI BIOS with GUI support
Graphics:
AMD RDNA™ 2 integrated graphics (actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (Compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio:
- 7.1ch HD audio (Realtek ALC897 audio codec)
- Nahimic Audio
LAN:
Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Slots:
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage:
CPU:
- 1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
RAID:
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M. 2 NVMe storage devices*
USB:
1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 rear, 2 front)
6 x USB 2.0 (2 rear, 4 front)
Connector:
- 1 x TPM SPI connector
- 1 x Power LED and Speaker Connector
- 1 x CPU fan connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V power connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 connectors (supports 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (Supports 2 USB 3.2 Gen1 ports)

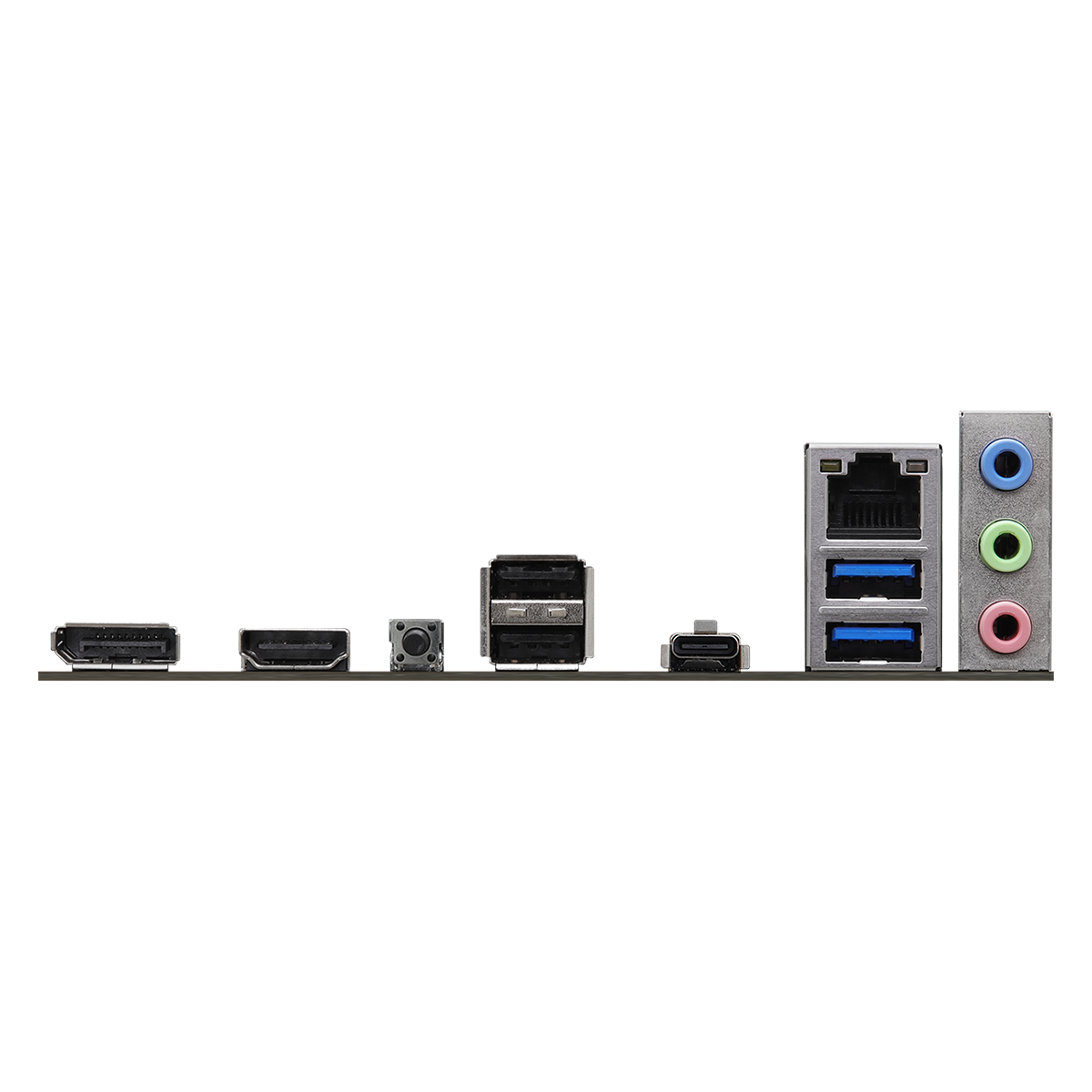

Rear Panel I/O:
2 x Antenna Mounting Points
1 x HDMI port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C port
3 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0 ports
1 x RJ 45 LAN port
1 x BIOS Flashback Button
HD Audio Connectors: Line In/Front Speaker/Microphone
Software and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories:
- 1 x User Manual
- 1 x I/O shield
- 2 x SATA data cables
- 3 x screws for M.2 sockets
